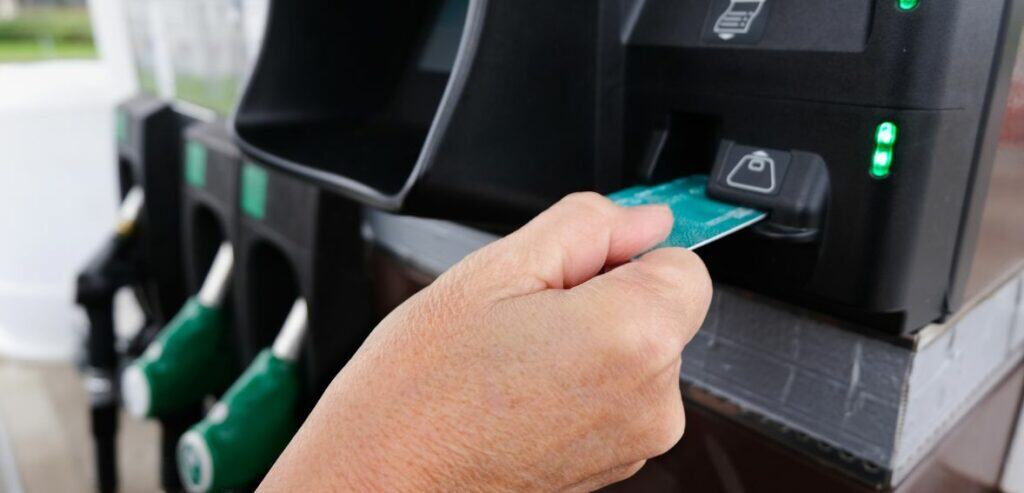

The external payment terminal is critical to a gas station’s day-to-day operations. Pay-at-the-pump stations are equipped to handle a range of payment options, such as credit cards, debit cards, and fuel cards. Among different types of terminals in the market, the TR1000 pay-at-the-pump terminal from Gilbarco Veeder-Root is a prime example of a features-rich outdoor payment terminal reader. This cost-effective payment solution acts as a go-to for all outdoor transactions. In this in-depth review of the Gilbarco pay-at-the-pump TR1000 terminal, we will analyze its features and functionality to help make an informed decision.

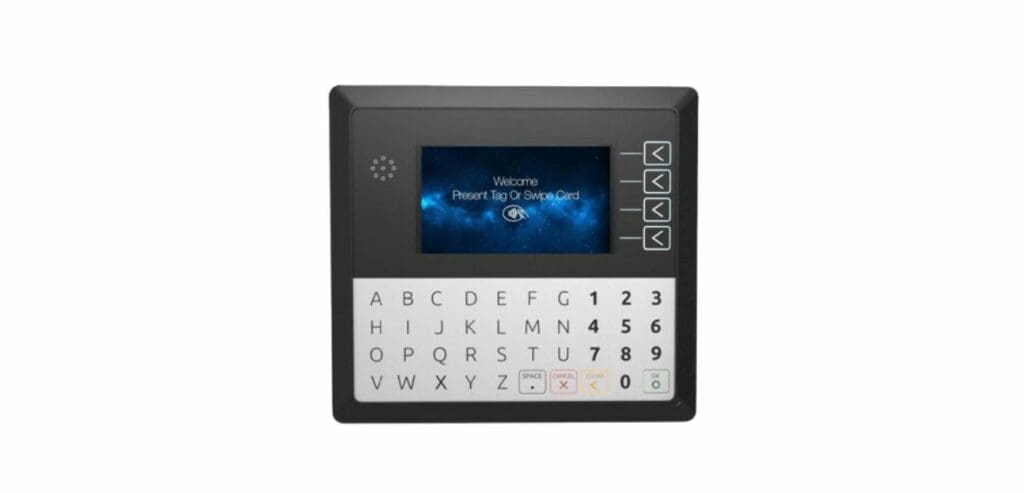

Overview of the Pay-at-the-Pump TR1000 Terminal
For over a century, Gilbarco Veeder-Root has been the primary equipment supplier for gas stations. They lead the industry by providing the most advanced technology innovations at fuel pumps, creating a new standard for gas stations today. The company’s latest TR1000 terminal in the product line is designed with security, data protection, customer convenience, and operational efficiency.
Image source
Thanks to the TR1000 pay-at-pump terminal, which can be easily attached to pumps or walls near them, seamless attended or self-service transactions are possible. Despite being small, the TR1000 boasts a simple design that improves usability and increases customer satisfaction. Whether you run a large commercial fuel depot or a small retail gas station, its variability gives everyone a fantastic experience.
Terminal features various payment options that support 125KHz Tags, magnetic stripe cards, MiFare Tags, 2D barcode readers for coupons or vouchers, and others. The TR1000 terminal is a perfect addition to a petrol forecourt. Being multi-purpose and offering advanced functions it guarantees comfort and security both for the operator and the customer.
Features of the Pay-at-the-Pump TR1000 Terminal
The TR1000 point-of-sale system is small but mighty. It can fit snugly in your palm yet boasts incredible versatility. It features a vibrant 4.3″ multimedia color display, four screen keys, and a sturdy 40-key keyboard with alphanumeric capability. The interface’s straightforward navigation lets customers breeze through transactions effortlessly. With four-digit keys and a touchscreen display, it offers seamless usability.
Beyond transactions, the TR1000 supports multimedia content. This allows for advertisements and instructional videos, boosting customer engagement and generating additional income streams.
The device offers versatility with communication interfaces, including LAN and RS-485 connections to the station controller (FCC) or POS system. Here are some of the additional features of TR1000:
- Compact and Versatile Design
The Gilbarco TR 1000 has a slight, sleek build. It was made to slip into standard pump heads or pedestals to fit smoothly into new and old stations without requiring significant changes. That makes it an excellent pick for varied pump setups.
- Direct Pump Control
A vital feature of the TR1000 Terminal is its built-in pump interface, which allows direct pump control from the TR1000 terminal. This direct link ensures that transactions are processed smoothly and efficiently, minimizing customers’ time at the pump.
It also enhances safety by allowing immediate response to any issues at the pump, such as the need to stop fuel flow in an emergency. Integrating pump control into the payment terminal streamlines operations, reducing the need for separate systems and simplifying forecourt management.
- Comprehensive Service Offering
The TR1000 Terminal supports fleet and fuel card purchases, loyalty schemes, forecourt promotions, attendant management, and local accounts. This in-depth service provision enables stations to offer specific customer requirements, improve customer loyalty, and increase repeat business.
By adopting forecourt promotions and loyalty schemes, stations can easily convey important or interesting messages to their clients. At the same time, the support for local accounts and fleet card purchases simplifies transaction processes for commercial clients. Attendant management functionality further enhances operational efficiency by allowing for better management and accountability of station staff.
- Full Alphanumeric Vandal Proof Keyboard
The TR 1000’s key aspect is durability, as evidenced by its 40-key full alphanumeric keyboard. Designed to withstand the rigors of outdoor environments and potential vandalism, the keyboard is built from high-quality materials that can endure heavy use and harsh weather conditions. This ensures the terminal remains functional and secure over time, minimizing maintenance costs and downtime.
The comprehensive keyboard layout facilitates easy input of information, such as PINs or loyalty program details, enhancing the user experience.
- Multiple Communication Interfaces
Flexibility in connectivity is crucial for modern payment terminals, and the TR 1000 excels in this area. It supports a variety of communication interfaces, including traditional wired connections and wireless options. This enables seamless integration with existing network infrastructure and allows easy updates or replacements as technology evolves.
The multiple communication options also ensure that the terminal can transmit transaction data securely and reliably, meeting the stringent security standards required for financial transactions.
- Enhanced Security Features
Security is paramount in payment transactions, and the Gilbarco TR 1000 is equipped with advanced security features to protect customer data and financial transactions. The terminal adheres to the latest industry security standards, employing encryption and secure protocols to safeguard against fraud and unauthorized access.
This provides peace of mind for operators and customers, knowing their transactions are secure.
- Support for Various Authorization Methods
In today’s diverse payment ecosystem, the TR1000 Terminal’s ability to enable different authorization methods is necessary. This includes traditional magnetic stripe cards, EMV chip cards, contactless payments (such as NFC-based mobile payments), and QR code scanning.
By accommodating a wide range of payment options, the terminal meets the expectations of all customers, ensuring that no one is turned away due to payment incompatibility. This inclusivity in payment options enhances customer satisfaction and ensures that fuel stations can cater to the needs of a technologically evolving customer base.
What are the Specifications Pay-at-the-Pump TR1000 Terminal?
Image source
The Gilbarco Pay-at-the-Pump TR 1000 Terminal is designed with precision to cater to the demanding environments of fueling stations, offering robust performance across various parameters. Below is an in-depth look at its specifications, explained to highlight the terminal’s engineered resilience and operational efficiency.
- Physical Build and Design
The terminal has a compact design, carefully calibrated to 164mm in height, 179mm in width, and a slim profile of 35.5mm. This streamlined build allows easy integration into different pump setups without compromising space.
Despite its compact size, the terminal weighs 600 grams, lending it a solid and durable feel, ready to withstand everyday use.
- Electrical Requirements
Designed for efficiency, the TR 1000 operates on a versatile voltage range of 12-24V DC, making it adaptable to various power supply standards. It maintains low power consumption at 4A, ensuring optimal performance without excessive energy use. This balance between energy efficiency and performance underlines its suitability for continuous operation in fueling environments.
- Environmental Durability
The terminal is engineered to reliably perform in extreme conditions, with an operating temperature range from -40°C to +65°C. When equipped with a barcode reader, the range is slightly adjusted to -30°C to +60°C. For storage, the terminal can withstand temperatures from -40°C to +85°C.
It’s designed to operate at a non-condensing 95% humidity level, ensuring functionality even in highly humid environments. Additionally, it meets the IEC60945§8.7 standard for vibration resistance and boasts an IP65 rating, signifying its capability to resist dust ingress and low-pressure water jets from any direction.
- Display and Communication
Central to its user interface is a high-brightness 4.3-inch LCD colored display. It offers a 480 by 272 pixels resolution in a 16:9 aspect ratio, ensuring clear visibility under various lighting conditions.
It features multiple interfaces, including RS232, RS485, USB device connectivity, Ethernet 10/100 base T, and dual wireless channels (IEEE802.15.4), enabling flexible and robust data exchange.
- User Interface
The terminal offers an intuitive user experience through its 40-key keyboard with full alphanumeric and four screen addressable keys, facilitating customers’ and operators’ ease of use.
- Card/Tag Reader Integration
It is equipped with a magnetic card reader, a contactless MiFare reader, and a 125K Tags reader, accommodating a wide range of payment options for enhanced customer convenience.
- Processing Capability
Powered by a 150 Mhz Cortex M4 CPU and backed by 32MB of flash memory and 64MB DDR2 RAM, the terminal is crafted for quick and reliable transaction and data processing.
- Certifications and Optional Accessories
The TR 1000 Terminal adheres to various certifications, including CE, compatibility with Forecourt Controller standards, UL/cUL, and Atex zone 2, indicating its compliance with international safety and operational standards. It offers optional accessories such as an SD card, built-in pump interfaces, and 2D barcode scanner integration for expanded functionality.
Each aspect of the Gilbarco Pay-at-the-Pump TR 1000 Terminal’s specifications reflects a commitment to quality, durability, and user-centric design, making it a sophisticated solution for modern fueling stations.
User Experience and Ease of Use
The Gilbarco Veeder-Root Pay-at-the-Pump terminal is a user-friendly and technologically advanced fueling solution for both pump owners and their customers. It supports various payment methods, displays engaging promotions, and has a smooth interface. With its robust build and cost-effectiveness, it’s also ideal for fleet operators.
The terminal is designed to streamline operations and provide a pleasant refueling experience for drivers. TR1000 makes transactions smooth and improves customer experience. This versatile terminal supports multiple payment methods, from swiping and tapping to inserting your card, ensuring a seamless user payment experience.
Deploying and integrating the TR1000 into your forecourt environment is also easy, thanks to Gilbarco Veeder-Root’s commitment to providing a quick and painless installation process. Plus, with its compatibility with a wide range of POS systems and Gilbarco Veeder-Root’s extensive retail and cloud solutions, you can be sure that this payment terminal will fit seamlessly into your existing infrastructure. The TR1000 is the perfect addition to fleet home base stations, offering advanced functionalities without the headache of complex integration.

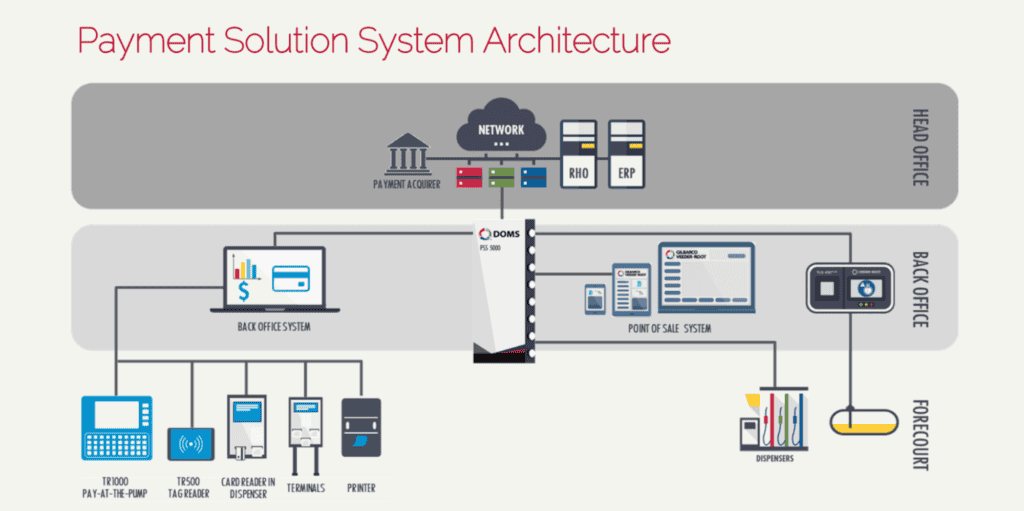

Gilbarco Pay-at-the-Pump Integration Options
The Gilbarco Veeder-Root TR1000 terminal is designed to integrate seamlessly with various systems and services, enhancing its utility in retail and commercial fleet settings. It is fully compatible with various third-party point-of-sale (POS) systems and Gilbarco Veeder-Root’s Cloud, Automation, and Retail solutions. It also facilitates connections to the preferred Back Office Systems, Car Wash Controllers, Integrated Loyalty Programs, Mobile Payment Processing Networks, Proprietary Fleets, Tank Gauges, and more, making it easier to adapt and expand functionality.
These integrations highlight Gilbarco Veeder-Root’s approach to offering flexible and comprehensive payment solutions that can adapt to various business needs. This ensures that the TR1000 terminal and related systems like Passport POS can support multiple functionalities and services across the retail and commercial fleet markets.
Conclusion
Selecting the right outdoor payment terminal system is crucial for any gas station’s efficiency and customer satisfaction. The Gilbarco Pay-at-the-Pump TR1000 Terminal emerges as a standout choice in this regard. Engineered with precision and versatility, it offers a comprehensive solution for fuel stations of all sizes.
With its compact and durable design, the TR1000 integrates into various pump setups, ensuring ease of installation and operation. Its advanced features, including direct pump control, comprehensive service offerings, and a full alphanumeric vandal-proof keyboard, enhance operational efficiency and customer experience.
Moreover, the TR1000 prioritizes security with advanced encryption and supports various payment methods, ensuring compliance with industry standards and meeting customers’ diverse needs.
Overall, the Gilbarco Pay-at-the-Pump TR1000 Terminal is a sophisticated, user-friendly solution that streamlines operations and enhances customer satisfaction. Whether for commercial home base depots or retail forecourts, it is a valuable addition, offering convenience, security, and reliability in fueling transactions. According to our assessment, we give this system a solid 4.2 Stars out of 5 Stars.
Frequently Asked Questions
What features distinguish the Gilbarco Pay-at-the-Pump TR1000 Terminal?
The TR1000 boasts a compact design, direct pump control, comprehensive service offerings, and a vandal-proof keyboard for enhanced durability and ease of use.
How does the TR1000 prioritize security in fueling transactions?
It employs advanced encryption and supports various payment methods to ensure compliance with industry standards and protect customer data.
What integration options are available with the Gilbarco Veeder-Root TR1000 Terminal?
The TR1000 integrates with Gilbarco Veeder-Root’s Retail, Cloud, and Automation solutions, third-party POS systems, Back Office Systems, and more.
What benefits does the TR1000 offer for fleet operators and home base depots?
Its robust build, cost-effectiveness, and user-friendly design make it ideal for managing fueling authorizations and purchases, providing convenience and reliability for fleet operations.
How does the TR1000 enhance the fuel station customer experience?
With features like direct pump control, comprehensive service offerings, and support for various payment methods, the TR1000 ensures efficient transactions and increased customer satisfaction.
